Design and purpose

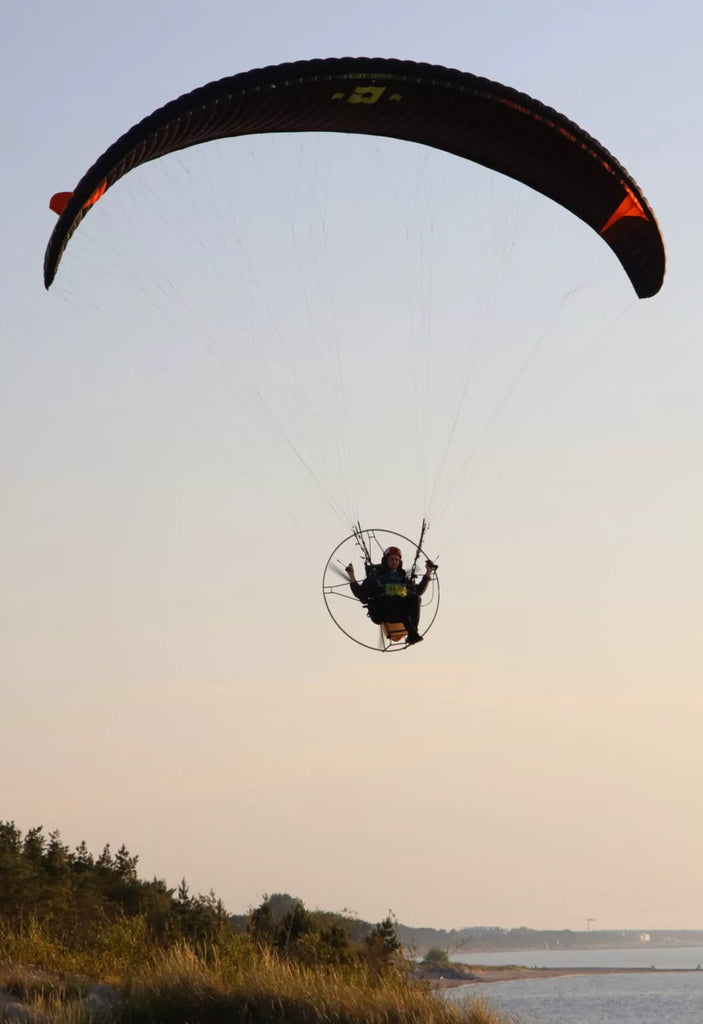

The Warp 3 is a high-performance cross country wing aimed at pilots who expect the highest performance on the market.
Warp 3 was initially designed to be optimized for classic competitions, but over time it proved to be even more suitable for everyday use than its predecessor. Thanks to the extensive work put into its development, we achieved numerous improvements, such as:
- Significantly expanded speed range
(approx. 6 km/h slower at trim speed) - Incereased efficiency
- Increased comfort in turbulence
- Reduced brake pressure and better handling
- Improved roll stability and autostabilization
- Easier takeoffs
These improvements were achieve by:
- a new airfoil
- reduction of the profile modification
- attachment points modification
- new outline
- modified arc
- new sail tensioning solutions
- use of unsheated lines and lighter fabrics
- winglets
The risers have also undergone significant changes.
Their design is based on the narrow, 15mm-wide riser used in the Snake 4. A new type of Rollercam trimmer buckle has also been incorporated, improving comfort and reducing wear on the trimmer risers.
Warp 3 is recommended for pilots experienced in flying Hadron 3-class wings or more demanding ones. Warp 3 will meet all the needs of demanding PPG pilots who enjoy long-distance flights or those for whom flight economy is a priority.
More construction details
- Shark-nose (SN) on the leading edge takes care of better aerodynamics of this part of the canopy, as well as higher inner pressure at wide range of the attack angles (meaning airspeed).
- The leading edge is stiffened with synthetic rods of the FET (Flexi Edge Technology), distinctly improving launch quality and guarding against collapses at high speeds.
- In addition Leading Edge 3D system enables a better real representation of the aerodynamic profile and reduces the amount of wrinkles on the fabric in the most important place in terms of lift and air resistance.
- The design features also other effective methods of canopy loads distribution, mediated by most modern sewing technologies.
- Three rows of suspension lines are joined at the risers, equipped with compact yet very efficient tools like trimmers, speed and Power Attack (PA) system.
- As per our standard, the risers are equipped with three optional positions for the steering pulleys and magnets to choose from. Thanks to all these features, steering operation is straightforward and intuitive.
- Obviously, in some paramotor/canopy configurations considerable amount of torque can appear. To counter this, there is proven in our Warp an automatic TEA system (Torque Effect Adjuster). It works on its own after placing the line on proper side, depending on the torque direction.
- Due to the small number of lines, they were carefully selected to obtain the lowest possible air resistance, while ensuring high strength and resistance to stretching. Warp 3 lines are almost fully unsheated.
Warp 3 is manufactured entirely in Europe, at our Polish plant, so that we have total control over its sophisticated production process (using among else the advanced LT (Laser Technology) cutting.
Construction solutions
Technologies, Concepts
Risers functionality
EK - Easy Keeper
Indigenous way to hold the brake handles at the risers that keeps them firmly in place, while both attaching and releasing goes smoothly and easily. Used in most of our handles (TCT, ACT, SCT).
